cheapino

Plates and cases

This simple plate works for both v1 and v2. It has no support or screw inserts, so not ideal for hotswap builds, but does the job.

Case

V2

This is the basically the same plate with a few supports placed where the mounting holes are. I have not tested to actually screw this on, Im just using it without screws: left plate with supports right plate with supports

This is a case I made, very compact, almost no empty space inside: https://www.thingiverse.com/thing:6661648

Lots of pictures here: https://imgur.com/a/cheapino-2-case-R4ialST

Case

A bit unfinished build guide for this case here.

TheMadClover made 2 really nice looking case options, one tented, and one flat, check them out here: https://www.printables.com/model/879047-two-case-designs-for-cheapinov2-split-ergo-keyboar Case

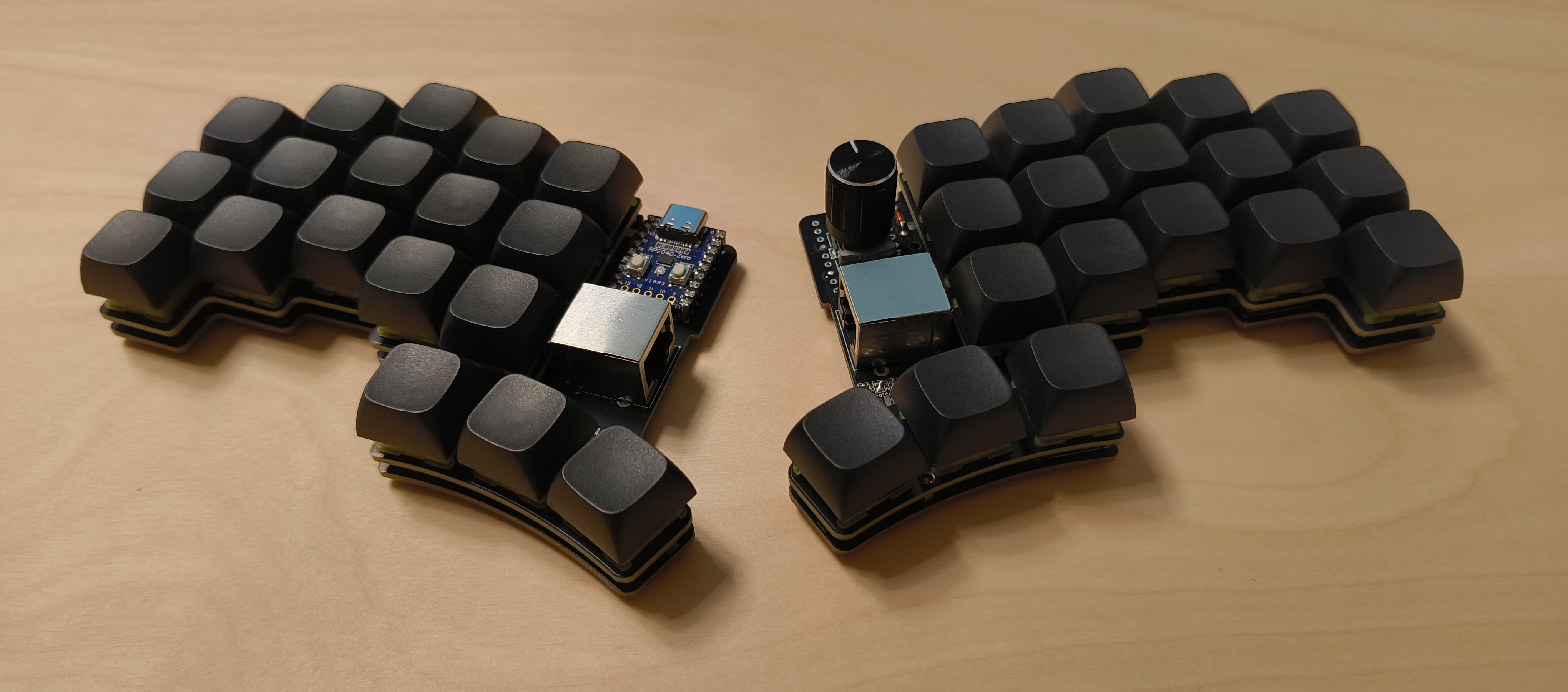

V2 Sandwich Case

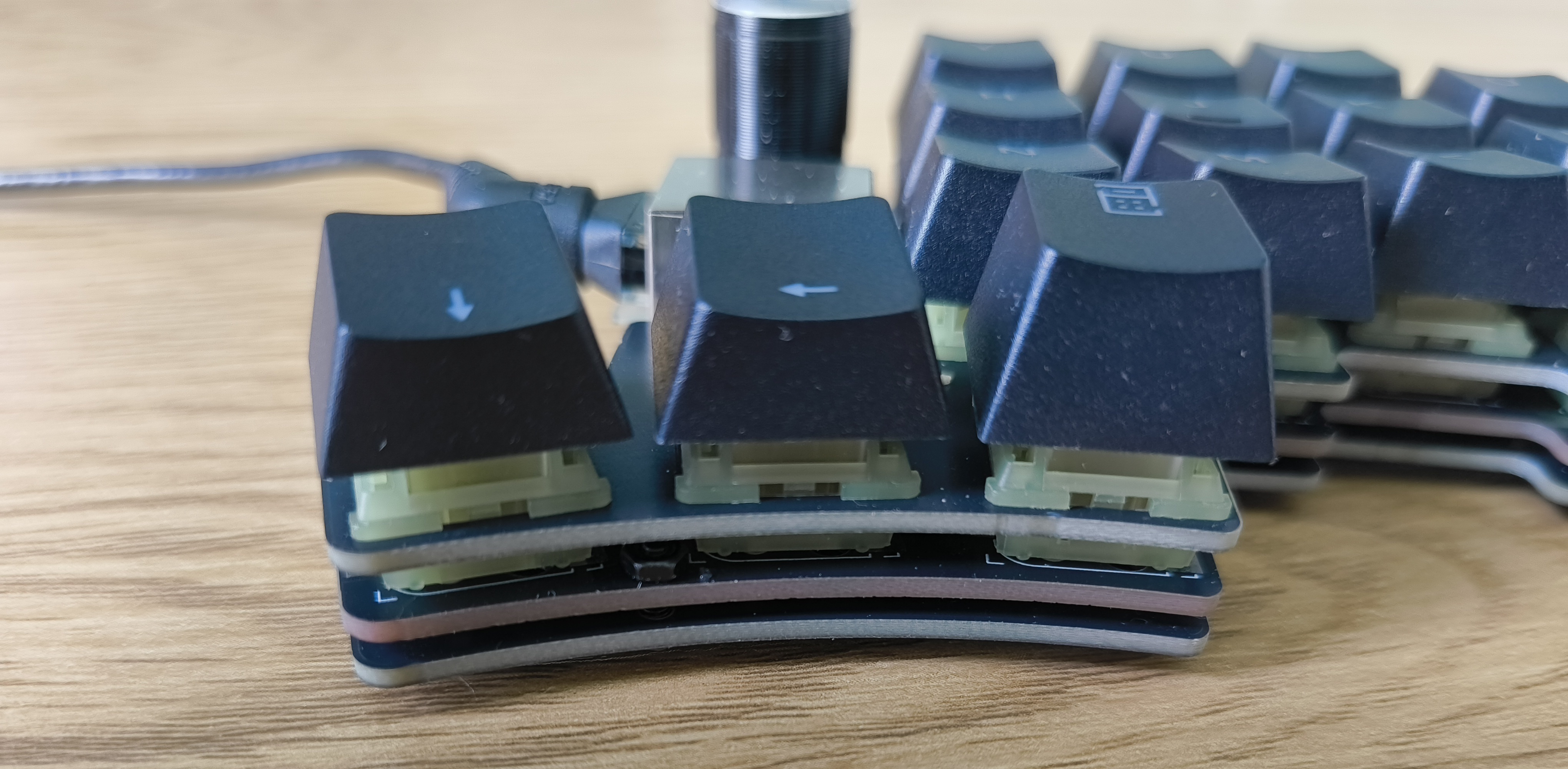

There’s also a sandwich case design that you can order together with the main PCB. It’s important to order the top plate with the default 1.6 mm thickness so that it clicks firmly into the MX switches. The top plate is held in place by the switches and doesn’t require spacers or screws for securing.

Case

The bottom plate has mounting holes aligned with the main PCB and can be secured using 7 mm long M2 flathead screws and nuts. In this setup, the bottom plate sits tightly against the sockets. Example parts from AliExpress:

Case

V1

This is a VERY nice case with built-in support for tenting and a travel solution: https://www.printables.com/model/835134-cheapino-split-keyboard-case

Case

This is a case for v1 with a simple tenting solution: https://www.printables.com/model/541536-cheapino-case-with-basic-tenting

Case
